Real-time Data Replication from Amazon RDS to Oracle Autonomous Database using OCI GoldenGate

Article first appeared here


Goldengate Microservices 21c is the latest version of the microservices architecture which makes creating data mesh and data fabric across different public clouds as easy as a few clicks. Goldengate is available on OCI as a fully managed service with auto-scaling. It does not.require installation of Goldengate software at either the source or Target db instances. Goldengate uses a capture and apply mechanism for replication using trail files. Both the extract (capture) and replicat (apply) processes run on the Goldengate replication instance which acts as a hub.

Let us go ahead and create a data pipeline for replicating Data in real-time using Oracle Cloud Infrastructure (OCI) Goldengate 21c from Amazon RDS Oracle Instance to an Oracle Autonomous database in OCI. Below are some of the common use cases for this solution :

Use Cases

  1. Cross-cloud replication of Oracle Database from AWS RDS to OCI
  2. Migration of Oracle Database with Zero Downtime from AWS RDS to OCI
  3. Creating Multi-Cloud Microservices Application with Oracle database as the persistent data store
  4. Creating a Multi-cloud Data Mesh for Oracle Database

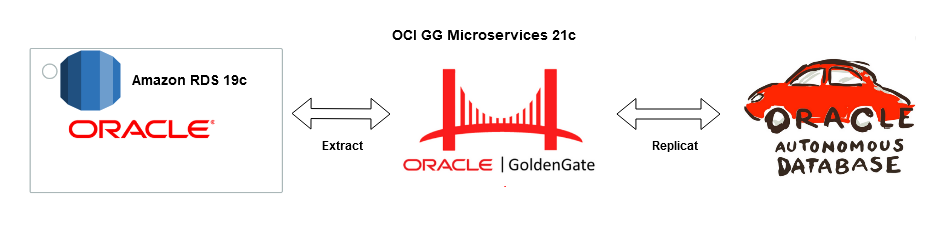

Source : Amazon RDS Oracle 19c EE

Target : OCI Autonomous Transaction Processing 19c

Replication Hub : OCI Goldengate 21c Microservices

Network : Site-to Site IPsec VPN or Fastconnect (Direct Connect on AWS)

The solution is broadly divided into four phases :

  1. Setup of RDS Instance and Preparing Source for Goldengate replication
  2. Setup of OCI Autonomous Database and Preparing Target for Goldengate Replication
  3. Deployment of OCI Goldengate and Creation of Deployment and Register Source and Target Databases
  4. Create Extract (Capture) and Replicate (Apply) process on OCI Goldengate

Phase 1 — AWS Setup : RDS Source and Enable Goldengate Capture

The first part of the setup requires us to provision a VPC, Subnet Group and Oracle 19c RDS Instance on AWS. Please ensure all the requistie Network constructs like security groups are in place for connectivity from OCI Goldengate to RDS. In a production scenario it would be betetr to have the RDS instance without a public endpoint and have a Fastconnect setup from AWS to OCI

  1. Create a VPC and RDS Subnet Group

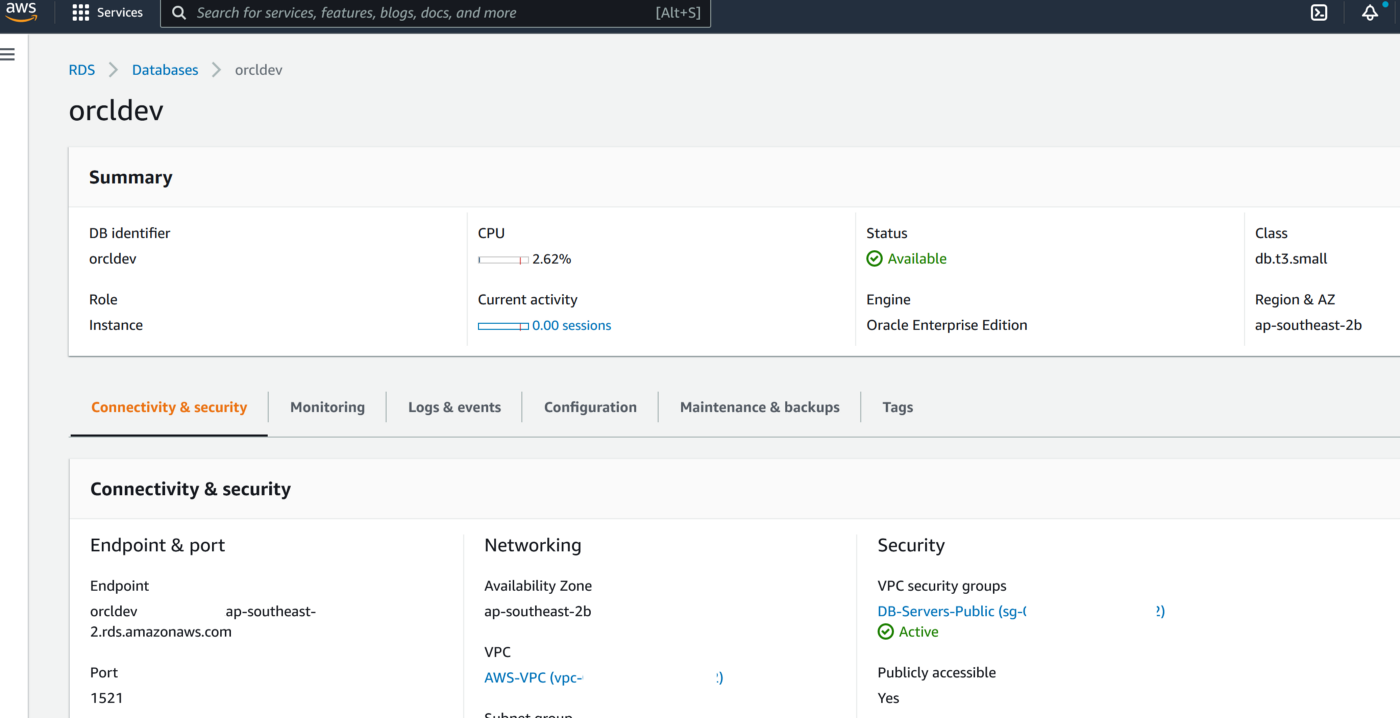

2. Create RDS Oracle Instance 19.1 EE with super user as ‘admin’

3. Create a new DB Parameter Group for 19.1 EE with parameter ENABLE_GOLDENGATE_REPLICATION set to TRUE

4. Change the parameter group of the RDS instance and reboot the RDS Oracle instance once the parameter group has been applied. Double-check to confirm the parameter ENABLE_GOLDENGATE_REPLICATION is set to True and the correct parameter group is applied to the RDS isntance

5. Set the log retention period on the source DB with ‘admin’ user

exec rdsadmin.rdsadmin_util.set_configuration('archivelog retention hours',24);commit;

6. Create a new user account to be used for Goldengateon the RDS instance with ‘admin’ user

CREATE TABLESPACE administrator;



7. Grant account privileges on the source RDS instance with ‘admin’ user







exec rdsadmin.rdsadmin_util.grant_sys_object (‘DBA_CLUSTERS’, ‘OGGADM1’);

exec rdsadmin.rdsadmin_util.grant_sys_object (‘DBA_CLUSTERS’, ‘ADMIN’);




grant unlimited tablespace TO oggadm1;



8. Finally, grant the privileges needed by a user account to be a GoldenGate administrator. The package that you use to perform the grant, dbms_goldengate_auth or rdsadmin_dbms_goldengate_auth, depends on the Oracle DB engine version.

— With admin user on RDS Oracle instance for Oracle Database version lower than 12.2 —

exec dbms_goldengate_auth.grant_admin_privilege (grantee=>’OGGADM1′,privilege_type=>’capture’,grant_select_privileges=>true, do_grants=>TRUE);

exec dbms_goldengate_auth.grant_admin_privilege(‘OGGADM1′,container=>’all’);

exec dbms_goldengate_auth.grant_admin_privilege(‘OGGADM1’);


— For Oracle DB versions that are later than or equal to Oracle Database 12c Release 2 (12.2), which requires patch level–04.rur-2019–04.r1 or later, run the following PL/SQL program.

exec rdsadmin.rdsadmin_dbms_goldengate_auth.grant_admin_privilege (grantee=>’OGGADM1′, privilege_type=>’capture’,grant_select_privileges=>true, do_grants=>TRUE);


To revoke privileges, use the procedure revoke_admin_privilege in the same package.

9. TNS entry for AWS RDS Instance


Alias (to be used later in OCI GG configuration) : ORCLAWS

10. Create Test Table in RDS Oracle Instance

CREATE TABLE oggadm1.test (id number,name varchar2(100));

insert into oggadm1.test values (1,’Shadab’);

insert into oggadm1.test values (2,’Mohammad’);


11. Enable supplemental logging on with Admin user

Ref :

— Enable Force logging —

EXEC rdsadmin.rdsadmin_util.force_logging(p_enable => true);

— Enable Supplemental logging —

begin rdsadmin.rdsadmin_util.alter_supplemental_logging(p_action => ‘ADD’);


— Enable Force logging —

EXEC rdsadmin.rdsadmin_util.force_logging(p_enable => true);

— Enable Supplemental logging —

begin rdsadmin.rdsadmin_util.alter_supplemental_logging(p_action => ‘ADD’);


— Enable Force logging —

EXEC rdsadmin.rdsadmin_util.force_logging(p_enable => true);

— Enable Supplemental logging —

begin rdsadmin.rdsadmin_util.alter_supplemental_logging(p_action => ‘ADD’);



Phase 2 — OCI Setup : Autonomous Database

We will provision the VCN, Autonomous Database on OCI and enable the goldengate replication user

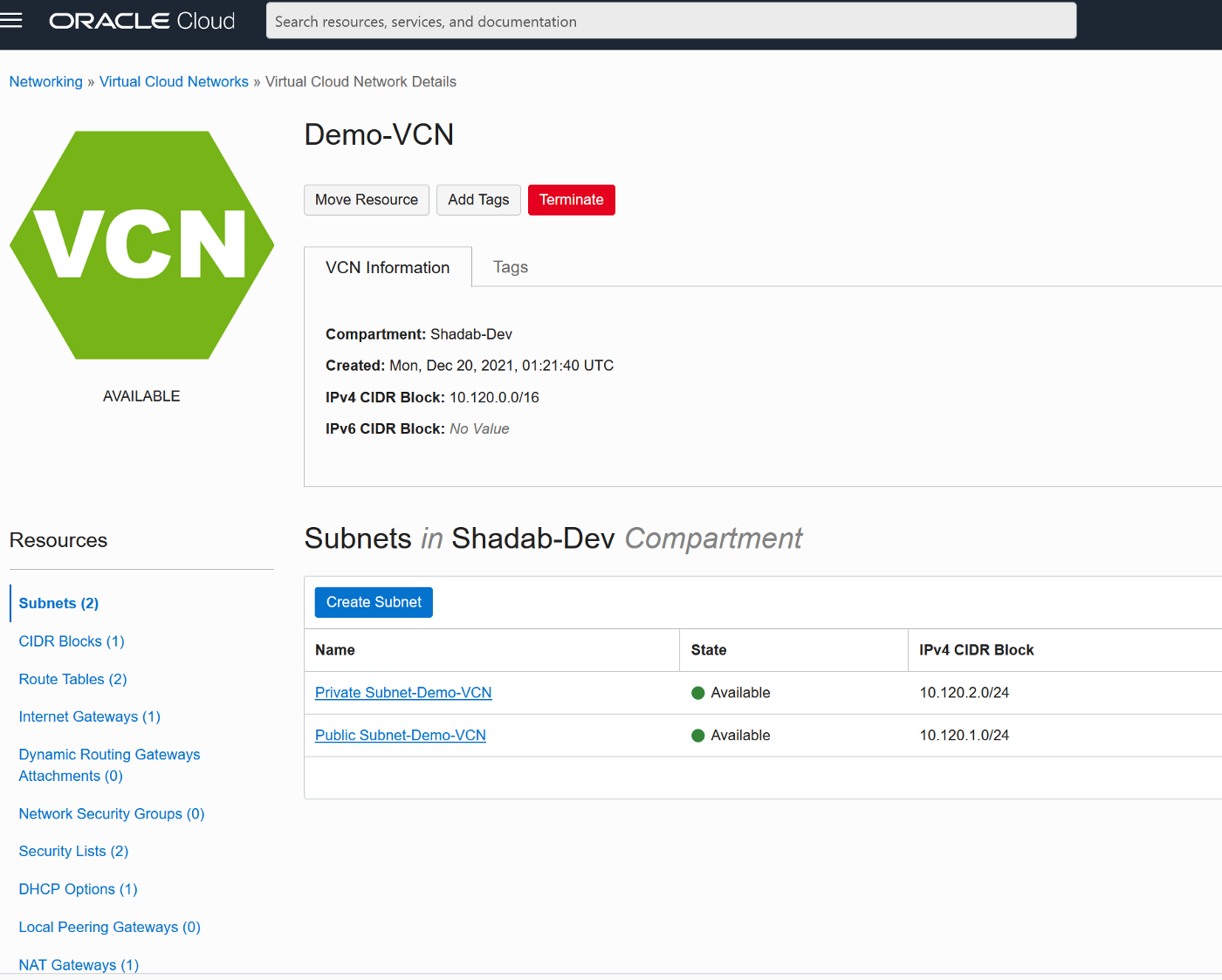

  1. Create VCN

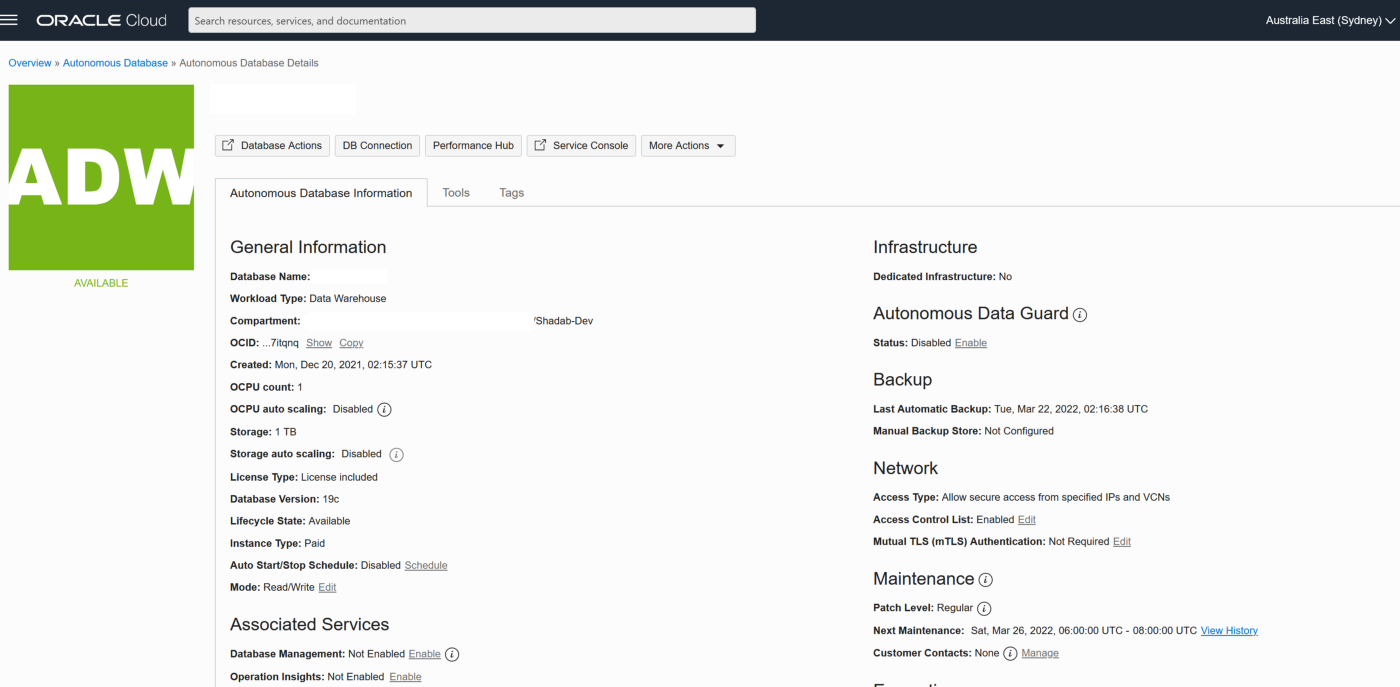

2. Create Autonomous Transaction Processing Database with Network Options and mTLS not required

3. Unlock ggadmin user in the ATP

                           alter user ggadmin identified by ****** account unlock;

4. Create Table ‘test’ in admin schema and do initial load (Normally this has to be done using data pump but it is beyond the scope of this article)

CREATE TABLE test (id number,name varchar2(100));

insert into test values (1,’Shadab’);

insert into test values (2,’Mohammad’);


select * from test;

Phase 3 — OCI Setup : Goldengate

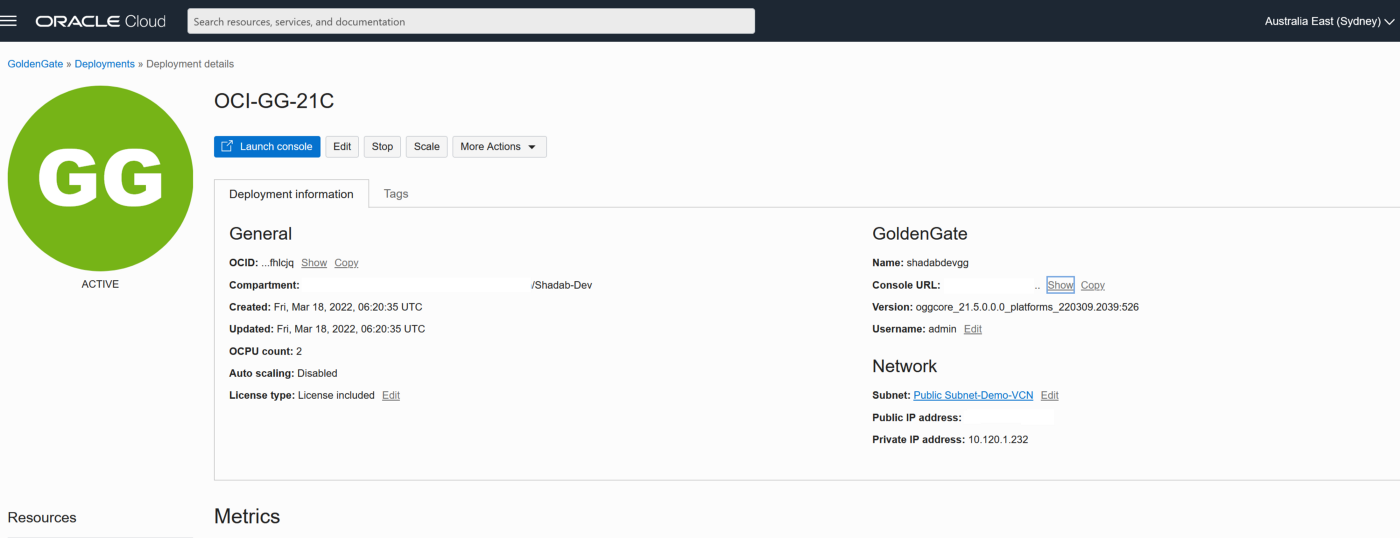

  1. Go to OCI Console Go to Oracle Database > Goldengate > Deployments > Create Deployment

2. Go to Oracle Database > Goldengate > Registered Databases

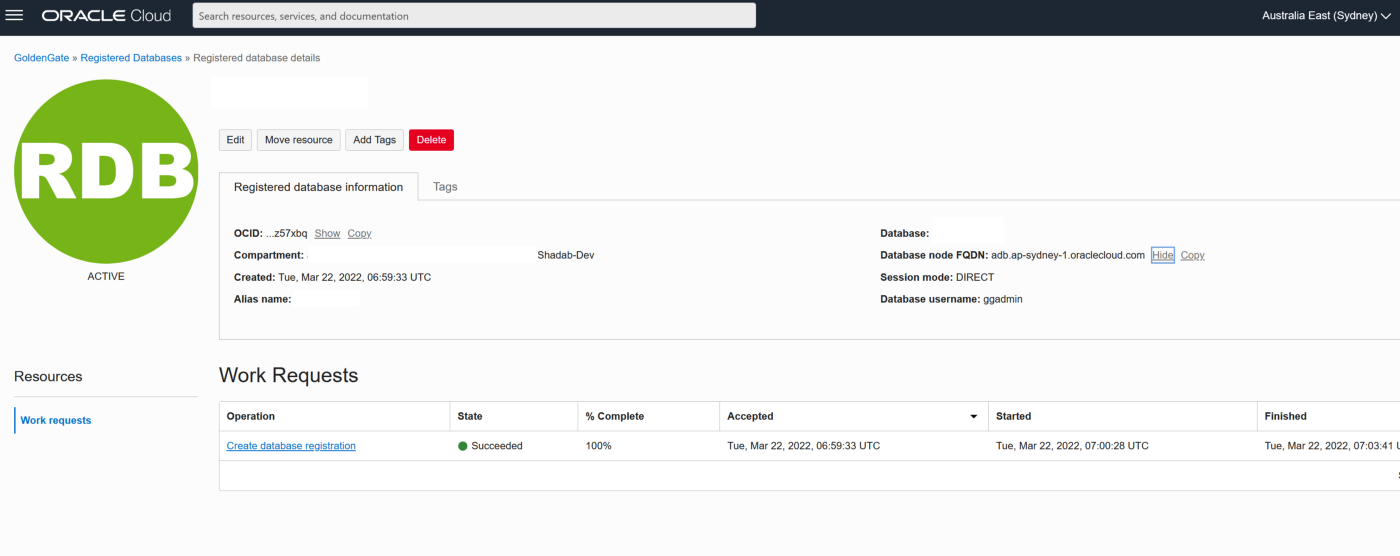

a. Add the ATP database created above with the ggadmin user

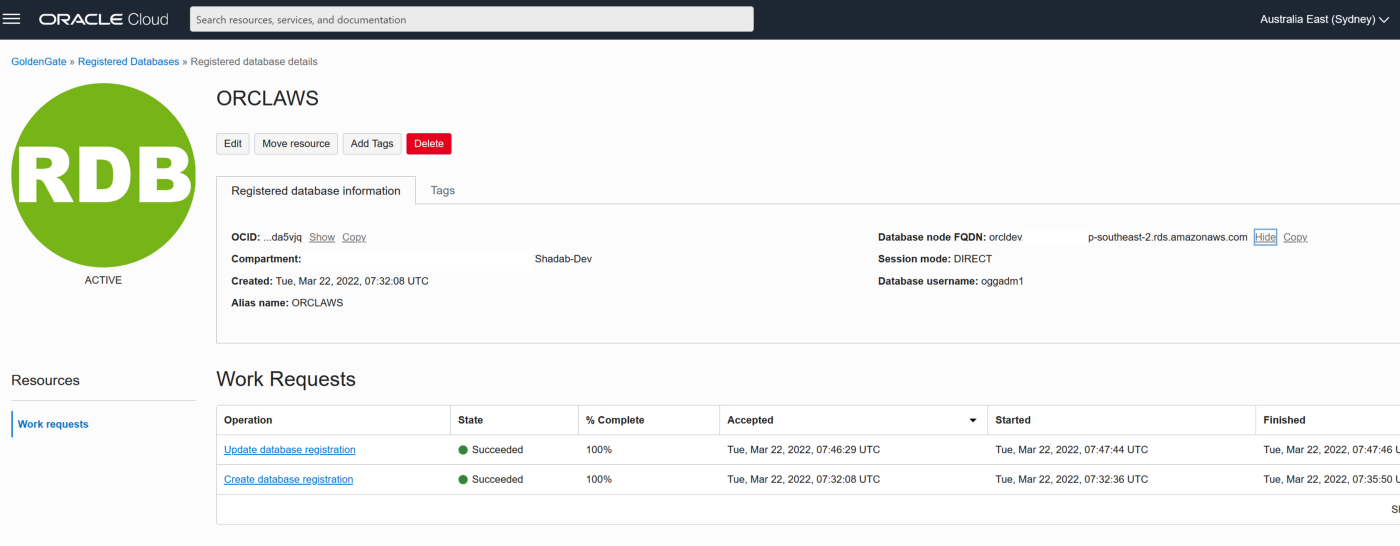

b. Add the RDS instance database using oggadm1 user

3. Test the connectivity to both databases , it should in console as Active

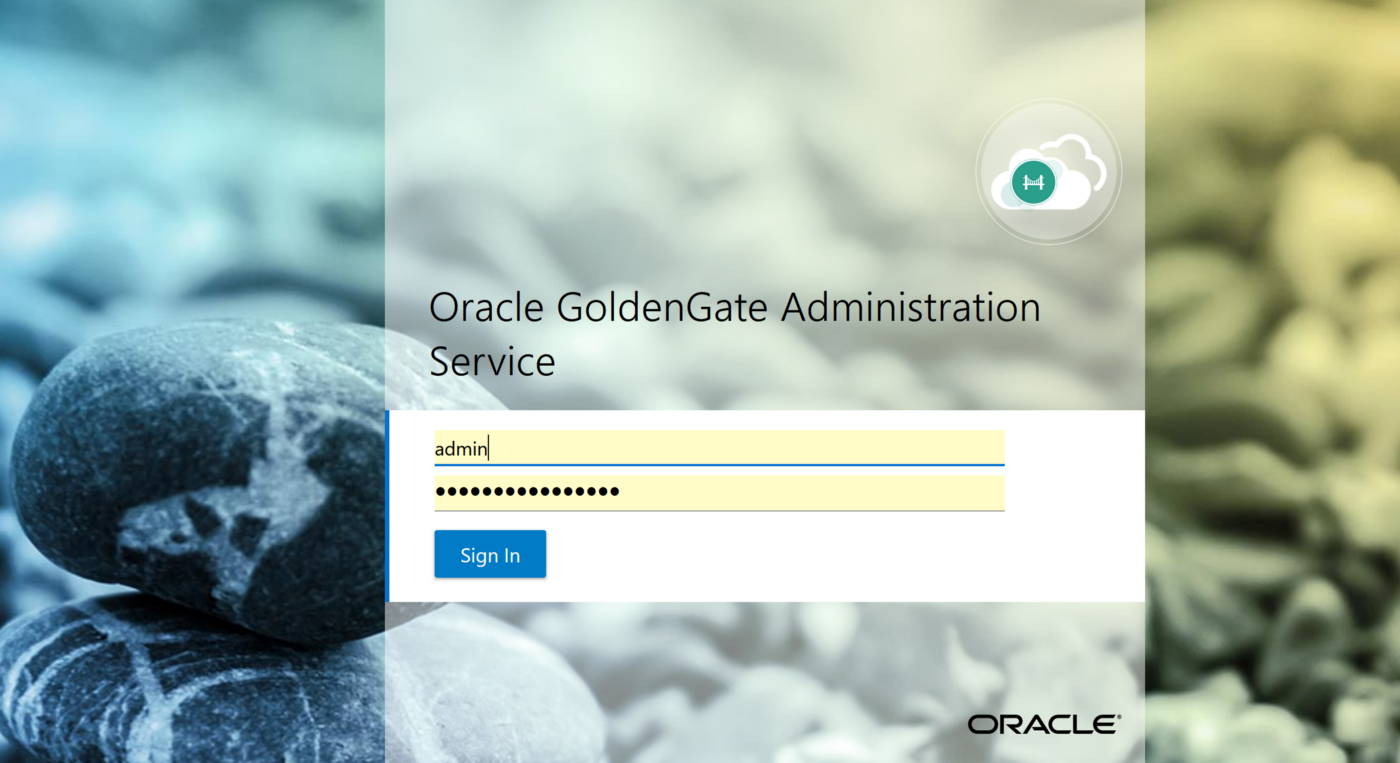

4. Go the launch URL for the Goldengate deployment username and password as per step 1.

                         eg : https://e*******

Phase 4 — Create , Extract (Capture) and Replicat (Apply) and Start the Replication

1. Create an Integrated Extract from Administration Service, click on the plus symbol next to the extract section

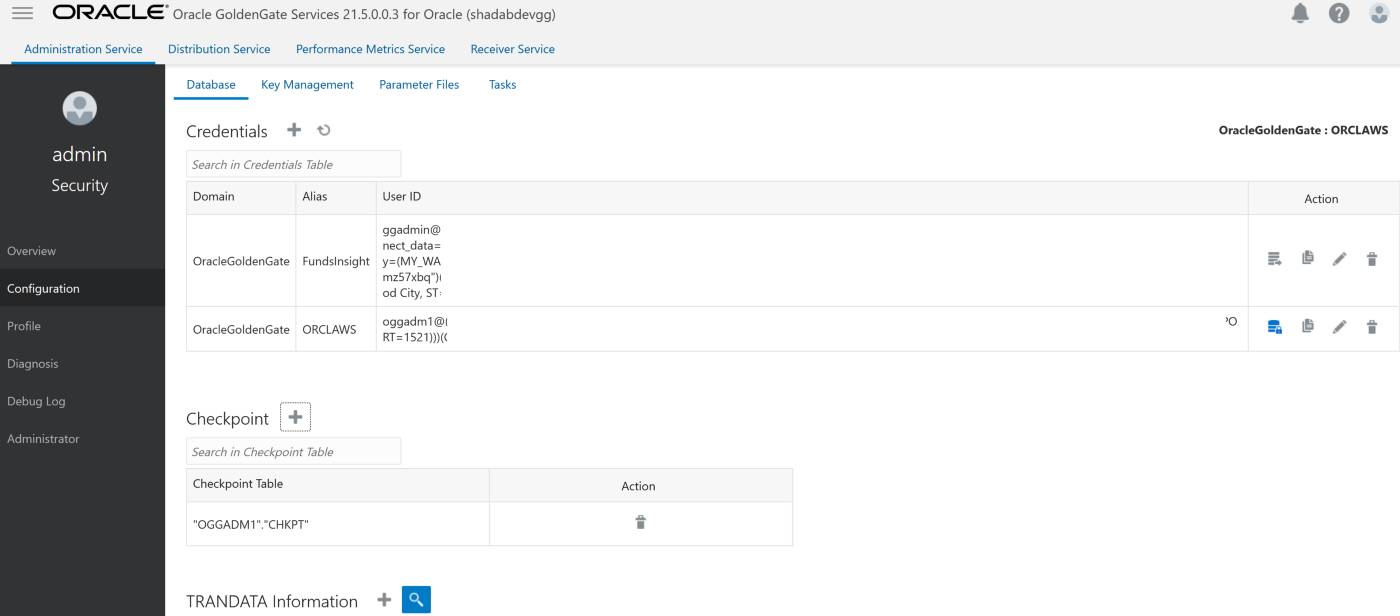

Go to Main Page > Configuration > Login to AWS RDS instance

a. Create Checkpoint table oggadm1.ckpt

b. Add Tran Data for Schema oggadm1





2. Create Non-integrated replicat for ADB on trail file ‘aw’. click on the plus symbol next to the Replicat section

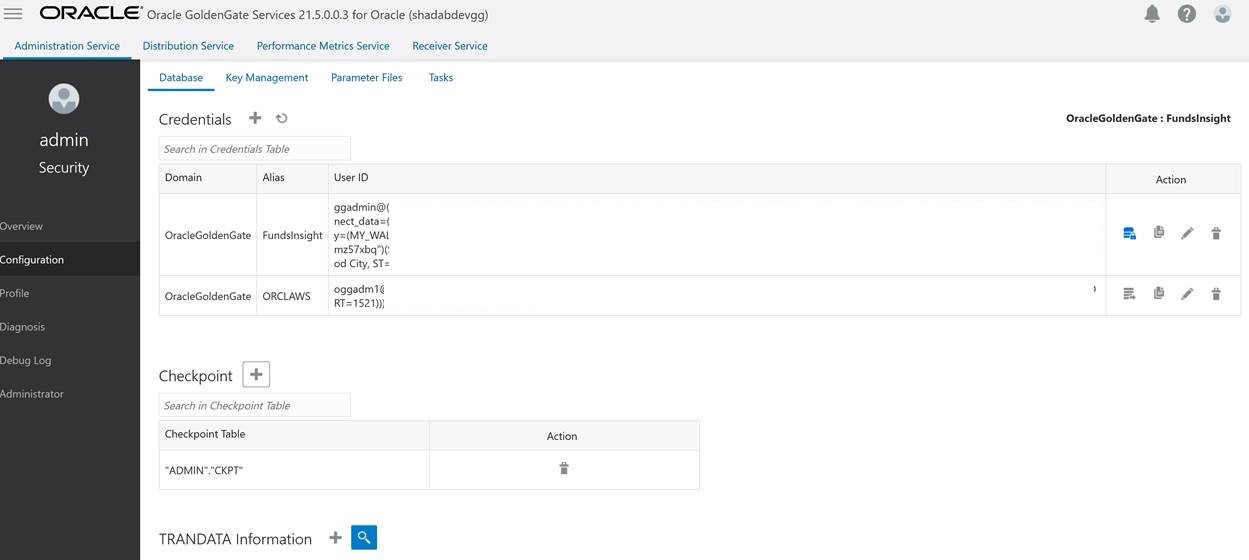

Go to Main Page > Configuration > Login to ATP instance

a. Create Checkpoint table admin.ckpt

b. Add Tran Data for Schema admin

c. Add heartbeat table


USERIDALIAS FundsInsight DOMAIN OracleGoldenGate

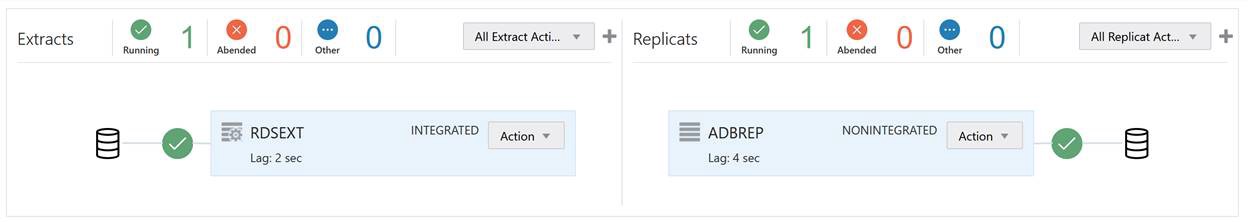

The status should be green on the OCI Goldengate Administration Dashboard

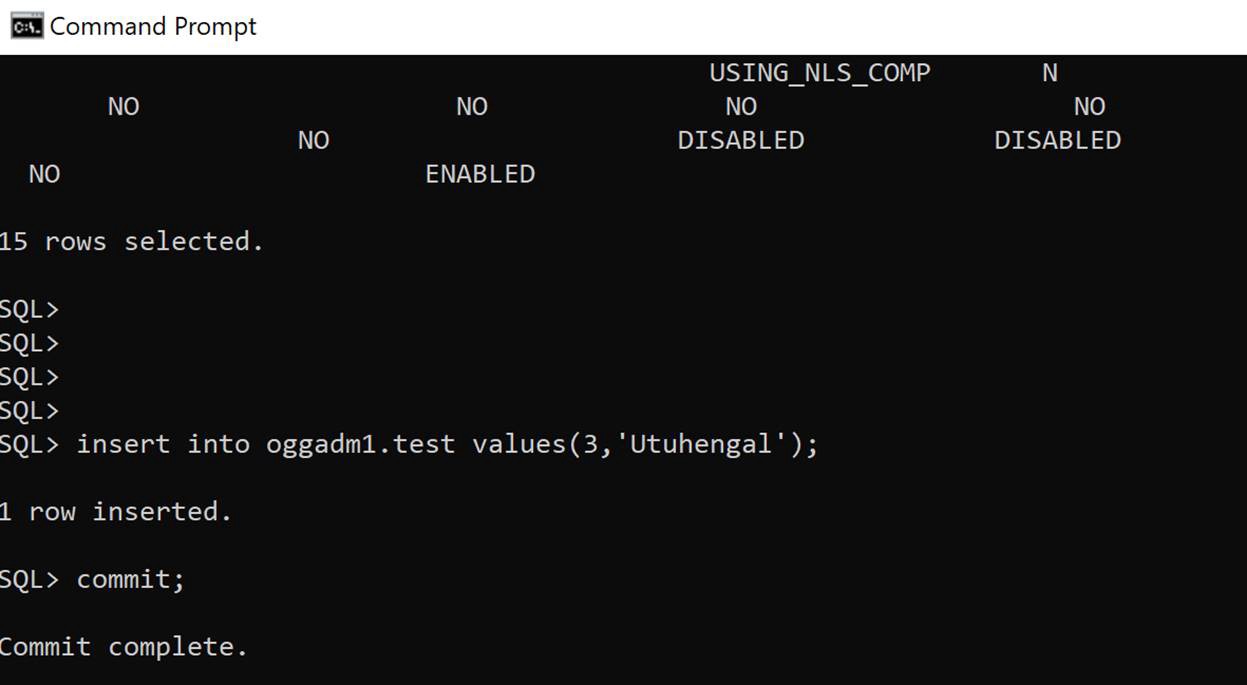

3. Insert transaction at RDS source

                            insert into oggadm1.test values(3,'Utuhengal');commit;

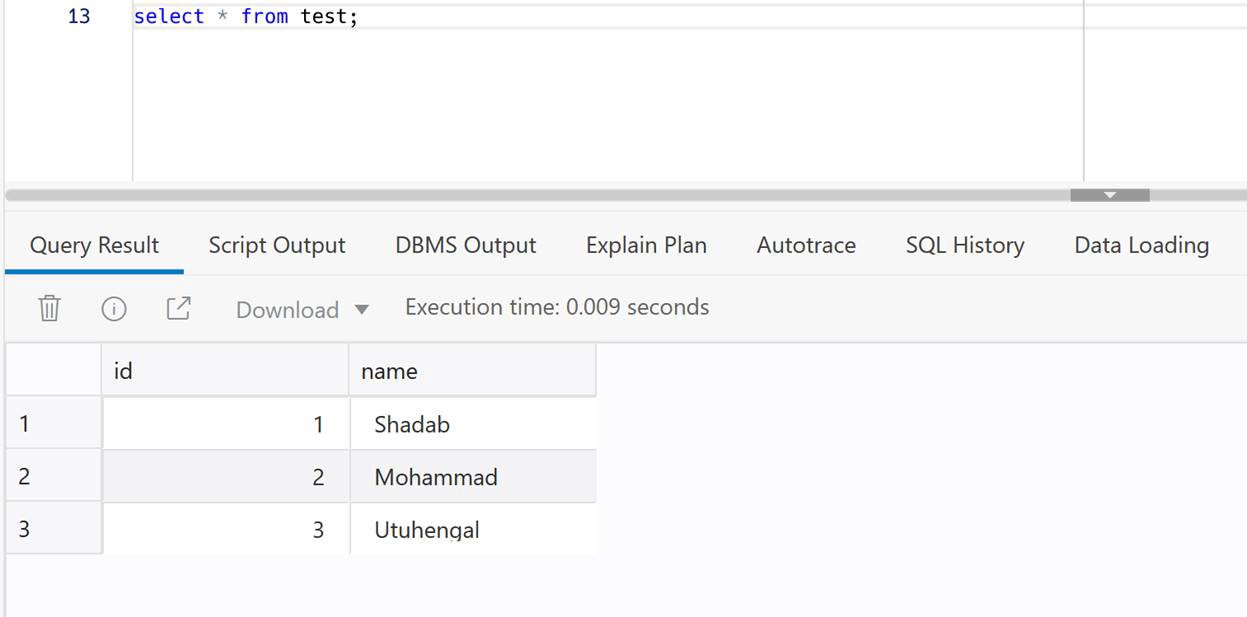

4. Check at ADB Target

                            select * from test;


We have created cross-cloud replication from an Oracle Database sitting inside AWS to an Oracle Autonomous Database running on OCI. The idea was to demonstrate the capability and ease of Goldengate Microservices to run a a replication hub on OCI and let you create real-time change data capture across two different public clouds. Every component used in this architecture is a fully managed service without the need of managing any servers or installing any agents on either source or target as they are fully managed cloud services without access to under-lying host.


  1. Setup of Goldengate for RDS :
  2. Goldengate Setup for RDS Source :
  3. RDS Common Tasks :
  4. OCI Goldengate Database Registration :
  5. Apex Livelab for OCI Goldengate Microservices 21c :
  6. OCI Goldengate Blog :
  7. Getting Started with Goldengate :

Backup and Restore PostgreSQL with Few Easy Shell Scripts

PostgreSQL is the most popular Open source database and there is a lot of information available when it comes to backing up and restoring PgSQL I have used these scripts to backup production databases and restored them to new Postgres Servers. So here it goes

Backup PostgreSQL Database –

# Dump DBs
  date=`date +"%Y%m%d_%H%M%N"`
 pg_dump -U postgres --encoding utf8 -F c -f $filename.dump $dbname

Restore PostgreSQL Database –

# Restore DB
  pg_restore -U postgres -d demo -c < ./$1
exit 0

Usage for Restore

$ ./ pgimportmaster-demo-20211129_1013.dump

AWS Lambda Function to Load Data from ‘Requestor Pays’ S3 bucket in One Account to Redshift Cluster in Another Account

Part A : Create Redshift Spectrum Cross-Account Access for S3

Company Account A: Redshift Cluster Account: 24xxxxxx16
Role: RoleA

Company Account B: S3 Bucket Account: 8xxxxxxxx11
Role: RoleB
Bucket Name (Create with Option “Requestor Pays”): s3://shadmha-us-east-2

Use Case:  1. Read Data from S3 Bucket in different account into Spectrum Table
                   2. Unload Data from Redshift Cluster to S3 bucket in different account


Step 1: In Redshift Cluster Account 24xxxxxx16, do this

a)    Go to IAM > Roles > Create Role
b)    Create Role > Redshift > Redshift – Customizable.
c)    No need to add policies or tags, go ahead and save this role as “RoleA”
d)    Add this role to your Redshift cluster. Goto Redshift Console > Select Cluster > Manage IAM > Add “RoleA” to Cluster

Step 2: In account which has the S3 Bucket Account 8xxxxxxxx11, do this:

a)    Go to IAM > Policies > Create policy
b)    Select the JSON tab and add below IAM policy, replace my bucket name ‘shadmha-us-east-2’ with your bucket name

    “Version”: “2012-10-17”,
    “Statement”: [
            “Effect”: “Allow”,
            “Action”: [
            “Resource”: [
            “Effect”: “Allow”,
            “Action”: [
            “Resource”: “*”

Chose Review Policy & Save the policy as let’s say ‘s3-cross-account-policy’

c)    Go to Roles > Create Role > Select type of trusted entity as ‘Another AWS Account’ tab
d)    Enter Account ID of Redshift Cluster Account ‘24xxxxxx16’ > Permissions > Search policy created in a)  “s3-cross-account-policy’
e)    Go next > create role > save it as “RoleB”
f)    Go to Roles > Select “RoleB” > “Trust Relationships” tab > Edit trust telationships. Add the below policy:

  “Version”: “2012-10-17”,
  “Statement”: [
      “Effect”: “Allow”,
      “Principal”: {
        “AWS”: “arn:aws:iam::24xxxxxx16:root”
      “Action”: “sts:AssumeRole”,
      “Condition”: {}

Update the trust policy

Step 3: Go back to Account under which Redshift Cluster is created

a)    Go to IAM > Roles > Select role which you created earlier “RoleA”
b)    Add inline policy to this role and add the below policy and save it

    “Version”: “2012-10-17”,
    “Statement”: [
            “Sid”: “Stmt1487639602000”,
            “Effect”: “Allow”,
            “Action”: [
            “Resource”: “arn:aws:iam::80xxxxx11:role/RoleB”
c)    Create policy and Save it to role

Part B: Deploy a Lambda Function Using Attached Code( And Change Your Cluster and Bucket Details Accordingly

Add a Cloud Watch Event Trigger with Cron Expression : cron(0 2 ? * FRI *)

Increase Timeout & Memory of Lambda Function

Configure Test Event

Execute the Lambda Function to Test

Python Code for Lambda Function

# Author         :      Shadab Mohammad
# Create Date    :      13-05-2019
# Modified Date  :      26-09-2019
# Name           :      Load Dataset from AWS S3 bucket to your Redshift Cluster
# Dependencies   :      Requires Python 3.6+. Python Libraries required ‘psycopg2’
import psycopg2
import csv
import time
import sys
import os
import datetime
from datetime import date
datetime_object =

print (“###### Load Data From S3 to Redshift ######”)
print (“”)
print (“Start TimeStamp”)
print (“—————“)
print (“”)

def lambda_handler(event, context):
        #Obtaining the connection to RedShift
    con=psycopg2.connect(dbname= ‘testdb’, host=’’, port= ‘5439’, user= ‘awsuser’, password= ‘SomeP@ssword’)

    copy_command_1=”copy connection_log from ‘s3://shadmha-us-east-2/cross-acct-test/connection_events.csv’ delimiter ‘,’ csv iam_role ‘arn:aws:iam::241135536116:role/RoleA,arn:aws:iam::804739925711:role/RoleB’ ignoreheader 1;”

    #Opening a cursor and run truncate query
    cur = con.cursor()
    query= f”’
    DROP TABLE IF EXISTS connection_log CASCADE;

    CREATE TABLE connection_log(
    username varchar(50),
    event varchar(50),
    count int8);

    #Opening a cursor and run copy query
    #Close the cursor and the connection

    # Progress Bar Code Ends here

    datetime_object_2 =
    print (“End TimeStamp”)
    print (“————-“)
    print (datetime_object_2)
    print (“”)

Lambda Function Code :

Redshift Health-Check SQL Queries

-- Query Performance Review --

$ psql -h -p 5439 -U awsuser -f review_query_pf.sql testdb

$ vim review_query_pf.sql

\o redshiftxxx.txt
\set vpattern 1678
\qecho -- Query Text - stl_explain
select * from stl_querytext where query = :vpattern;
\qecho -- Explain plan - stl_explain
select userid,query,nodeid,parentid,trim(plannode) plannode,trim(info) info from stl_explain where query = :vpattern;
\qecho --Review WLM Queuing for above queries - stl_wlm_query
       SUBSTRING(q.querytxt,1,100) AS querytxt,
       w.service_class AS class,
       w.slot_count AS slots,
       w.total_queue_time / 1000000 AS queue_seconds,
       w.total_exec_time / 1000000 exec_seconds,
       (w.total_queue_time + w.total_exec_time) / 1000000 AS total_seconds
FROM stl_wlm_query w
  LEFT JOIN stl_query q
         ON q.query = w.query
        AND q.userid = w.userid
WHERE w.query = :vpattern
--AND w.total_queue_time > 0
ORDER BY w.total_queue_time DESC,
         w.queue_start_time DESC;
\qecho --Get information about commit stats - stl_commit_stats
select startqueue,node, datediff(ms,startqueue,startwork) as queue_time, datediff(ms, startwork, endtime) as commit_time, queuelen
from stl_commit_stats
where xid in (select xid from stl_querytext where query = :vpattern)
order by queuelen desc , queue_time desc;
\qecho --Compile Time
select userid, xid,  pid, query, segment, locus,
datediff(ms, starttime, endtime) as duration, compile
from svl_compile
where query = :vpattern;
--\qecho --Understand other operations within the same PID - svl_statementtext
--select userid,xid,pid,label,starttime,endtime,sequence,type,trim(text) from svl_statementtext where pid in (select pid from stl_querytext where query = :vpattern);
\qecho --Review query work - STL_PLAN_INFO
select * from STL_PLAN_INFO where query = :vpattern;
\qecho --Review query work - svl_query_report
select * from svl_query_report where query = :vpattern order by segment,step,slice;
\qecho --Review query work - svl_query_summary
select * from svl_query_summary where query = :vpattern order by seg,step;
\qecho -- Review alert
select * from stl_alert_event_log where query = :vpattern;
\qecho -- Review STL_ERROR
select userid,process,recordtime,pid,errcode,trim(file),linenum,trim(context),trim(error) from stl_error where recordtime between (select starttime from stl_query where query = :vpattern) and (select endtime from stl_query where query = :vpattern);

How to Create an Immutable Account Ledger on Amazon QLDB

Amazon QLDB is a new specialist database technology which uses the concept of blockchain for database which maintains a history of every transaction using an immutable & cryptographically verifiable block hash for each record. QLDB uses an immutable transactional log, known as a journal, for data storage. The journal tracks every change to your data and maintains a complete and verifiable history of changes over time.

Sourcing data from the journal, QLDB uses a cryptographic hash function (SHA-256) with a Merkle tree–based model to generate a secure output file of your ledger’s full hash chain. This output file is known as a digest and acts as a fingerprint of your data’s entire change history as of a point in time. It enables you to look back and validate the integrity of your data revisions relative to that fingerprint.

Each ledge in QLDB has exactly one journal. A journal can have multiple strands, which are partitions of the journal.

QLDB is not a de-centralized blockchain network like Bitcoin or Ethereum, if you are looking for a managed block chain network then this is what you must be after –> Amazon Managed Blockchain

/* QLDB is now Generally Available in many regions. Ensure you update your awscli to the latest version to have access to QLDB from awscli. */

$ aws –version
aws-cli/1.16.240 Python/3.7.4 Darwin/17.7.0 botocore/1.12.230

$aws qldb help
       qldb –

       The control plane for Amazon QLDB

       o create-ledger

       o delete-ledger

       o describe-journal-s3-export

       o describe-ledger

       o export-journal-to-s3

       o get-block

       o get-digest

       o get-revision

       o help

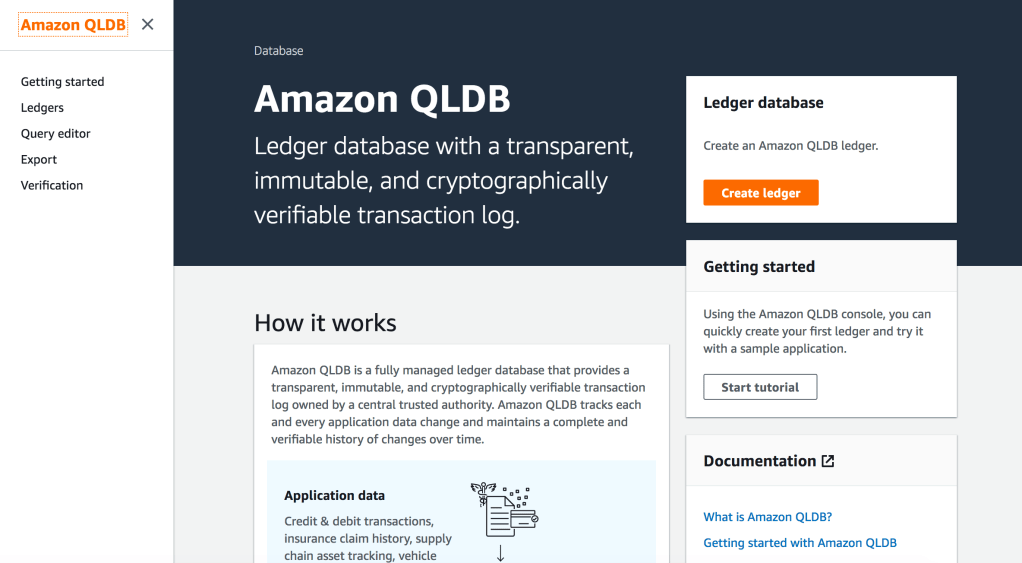

Head over to your AWS Console > Amazon QLDB

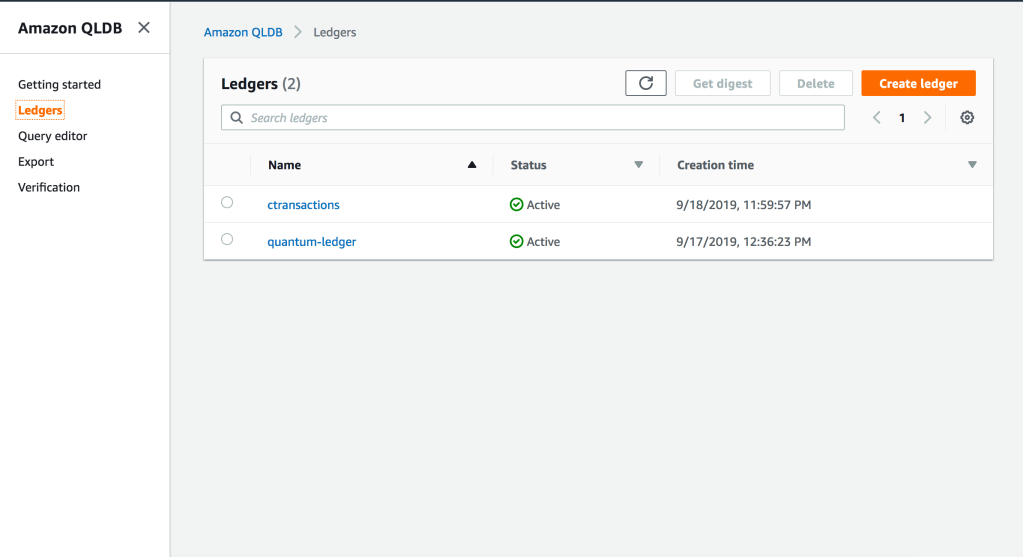

  1. Create New Ledger called ‘ctransactions’

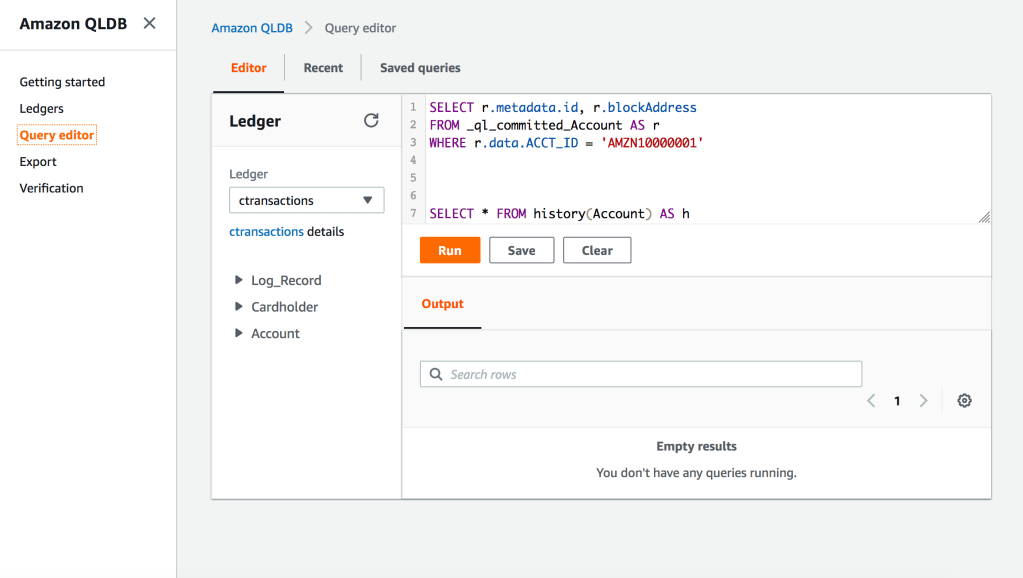

2. Go to Query Editor > Create Tables for the Account Ledger




3. Create Indexes to help speed up queries against each table




4. Insert 1 Record into the Ledger table ‘Account’. QLDB documents are stored in Amazon Ion format which is a Superset of JSON

‘FirstName’ : ‘Shadab’,
‘LastName’ : ‘Mohammad’,
‘ACCT_ID’ : ‘AMZN10000001’,
‘ACCTYPE’ : ‘Current’,
‘Address’ : ‘2000, 2 Park Street, CBD’


This is the document ID for this transaction

5. Create more records and change the first record from ‘Current’ to ‘Saving’ account

Important :
Because QLDB does not enforce schema, you can insert the same document into a table
multiple times. Each insert statement commits a separate document entry to the journal, and
QLDB assigns each document a unique ID.

 << {
‘FirstName’ : ‘Shadab’,
‘LastName’ : ‘Mohammad’,
‘ACCT_ID’ : ‘AMZN10000001’,
‘ACCTYPE’ : ‘Saving’,
‘Address’ : ‘2000, 2 Park Street, CBD’
‘FirstName’ : ‘William’,
‘LastName’ : ‘Tell’,
‘ACCT_ID’ : ‘AMZN10000002’,
‘ACCTYPE’ : ‘Saving’,
‘Address’ : ‘2013, 29 Campbell PDE, Bondi’
‘FirstName’ : ‘Chris’,
‘LastName’ : ‘Wall’,
‘ACCT_ID’ : ‘AMZN10000003’,
‘ACCTYPE’ : ‘Current’,
‘Address’ : ‘2142, 15 Lane Cove, Marickville’
} >>


6. Now let us check for all the changes done to this account using below query. We can check for all modifications made to the Account ID. Each modification or inser generated a unique hash we can be traced back to what that modification was

    ACCT_ID FROM Account AS a BY ACCT_ID WHERE a.ACCT_ID = 'AMZN10000001'

As you can see there are 2 modifications to this record and we can verify what each of those modifications are

7. Check for the history for each new documentID for the Account

SELECT * FROM history(Account) AS h WHERE
    = '7oOLmXPyHjXBSBCio76rJo'

  blockAddress: {
    strandId: “KQrxUDo7jDX4scpbKkhEVZ”,
    sequenceNo: 26
  hash: {{6HVuwag6GMEki+ZRFaMdqidROpKZmsTsYcmWiAMZdmw=}},
  data: {
    FirstName: “Shadab”,
    LastName: “Mohammad”,
    ACCT_ID: “AMZN10000001”,
    ACCTYPE: “Current”,
    Address: “2000, 2 Park Street, CBD”
  metadata: {
    id: “7oOLmXPyHjXBSBCio76rJo”,
    version: 0,
    txTime: 2019-09-19T05:56:20.874Z,
    txId: “2EOkrgLG2Xa7qBwEwnKzDJ”

    history(Account) AS h WHERE = 'L7S9f2cONhz1JQhj8Gj8bk'

  blockAddress: {
    strandId: “KQrxUDo7jDX4scpbKkhEVZ”,
    sequenceNo: 41
  hash: {{+qFvFfRx1pi9QOkotc9MAuAWs6Tw7jn3sZqlPpEjSDA=}},
  data: {
    FirstName: “Shadab”,
    LastName: “Mohammad”,
    ACCT_ID: “AMZN10000001”,
    ACCTYPE: “Saving”,
    Address: “2000, 2 Park Street, CBD”
  metadata: {
    id: “L7S9f2cONhz1JQhj8Gj8bk”,
    version: 0,
    txTime: 2019-09-19T06:14:04.214Z,
    txId: “2EOkrgMRCo4CBTUdJWSjmT”

Using the first hash we can see the account type was “Current”, and after we modified the document and checked it with the 2nd hash it now shows “Saving”. And we have a history of all modifications applied to that account to traverse back and check all modifications made to that Account ID.

8. To Verify a Document Revision

SELECT, r.blockAddress FROM _ql_committed_Account AS r WHERE = 'AMZN10000001'

id                                                   blockAddress
“7oOLmXPyHjXBSBCio76rJo”    {strandId:”KQrxUDo7jDX4scpbKkhEVZ”,sequenceNo:95}

“L7S9f2cONhz1JQhj8Gj8bk”        {strandId:”KQrxUDo7jDX4scpbKkhEVZ”,sequenceNo:95}

This is just the beginning of what can be possible to create in the FinTech world. No more complex audit reports and expensive 3rd part tools which are an additional overhead to manage, but your database itself keeps a history of any changes made to a transaction or account or debit/credit card.


[1] Accessing Amazon QLDB Using the AWS CLI –
[2] botocore –
[3] aws-cli –
[4] Installing the AWS CLI – Installing the AWS CLI Using pip –

Build and store a Hive mestastore outside an EMR cluster in a RDS MySQL database and Connect a Redshift cluster to an EMR cluster

This document addresses the specific configuration points that needs to be in place in order to build and store a Hive mestastore outside an EMR cluster in a RDS MySQL database. It also covers the steps to connect a Redshift cluster to an EMR cluster so Redshift can create and access the tables stored within the external metastore.

Resources Used:

Redshift Cluster

• RDS MySQL Instance

• EMR Cluster

Note: All resources must be in same VPC and same region for this practice.

Creating the RDS MySQL:

1 – First, start creating a RDS MySQL instance if you don’t have one already. Open AWS RDS Console and create an MySQL instance that will be used during this practice.

Note: Please make note of RDS security group, endpoint, Master User and Master Password. We will need that information later on.

2 – Once the RDS MySQL instance is created, modify its security groups to add a rule for All traffic on all Port Range to be allowed from the VPC’s default security group.

Note: This VPC’s default Security Group will be used while creating the EMR cluster later on as well but it needs to be whitelisted beforehand otherwise the EMR launching will fail while trying to reach out to the RDS MySQL.

Before creating the EMR Cluster:

3 – After creating the RDS MySQL (and open its security group to EMR) but right before creating the EMR cluster, a JSON configuration file needs to be created. This file will be ingested by EMR during the bootstrapping phase of EMR’s creation, it will basically tell EMR how to access the remote RDS MySQL database.

4 – Copy the JSON property structure from the following link (use Copy icon):

5 – Paste it in a text editor and modify it carefully with the RDS details you noted earlier.

Note: Be careful, the value property can not contain any spaces or carriage returns. It should appear all on one line. Save it as “hiveConfiguration.json”.

6 – The final JSON configuration file should look like the following:

      “Classification”: “hive-site”,
      “Properties”: {

        “javax.jdo.option.ConnectionURL”: “jdbc:mysql:\/\/\/hive?createDatabaseIfNotExist=true“,


        “javax.jdo.option.ConnectionPassword”: “*********

Note 1: replace <hostname>, <username>, <password> with your own details:

Note 2: The part “hive?createDatabaseIfNotExist=true” determines the name of the database to be created in the MySQL RDS, in this case the database will be called “hive”.

7 – After creating above file, upload it to an S3 bucket/folder of your choice (in the same region of your resources).

Creating the EMR:

8 – Now, it is time to create the EMR cluster. To do this, open AWS EMR console and click Create Cluster button. This will prompt the Quick Options page but we won’t be using that. Click on Go to advanced options on the top of the page.

9 – This will send you to the Advanced Options page. There, under Software Configuration, select the following Applications:

Hadoop, Ganglia, Hive, Hue, Tez, Pig, Mahout

10 – In the same page, under Edit Software Settings section, click Load JSON from S3 and select the S3 bucket/path where you uploaded the previous created file “hiveConfiguration.json“. Select the file there and hit Select.

11 – In the Hardware Configuration page, make sure that the EMR cluster is in the same VPC as your MySQL RDS instance. Hit Next if you don’t want to change any Network configuration or Node types.

12 – Hit Next in the General Options page if you don’t want to change anything, although you might want to change the name of your EMR cluster here.

13 – In the next page, Security Options, make sure you have an EC2 Key Pair in that region and select it. Otherwise, create one!

Note: Create one now (if you don’t have one) before creating the EMR as you CAN’T add it later!!!

14 – Still in the Security Options page, expand the EC2 security groups panel and change both, Master and Core & Task instances to use the VPC’s default security group (the same whitelisted in the RDS MySQL security group earlier).

15 – Hit Create cluster and wait the EMR to be created. It will take some time…

Confirming that the metastore was created in the RDS MySQL

16 – Once the EMR is created, another rule needs to be added to the VPC’s default security group, one that allows SSHing into the EMR cluster on port 22 from your local IP. It should look like the following:

17 – With the right rules in place, try to connect to your EMR cluster from your local machine:

– – – chmod 600 article_key.pem
–   ssh -i article_key.pem

18 – EMR has a MySQL client installed, use this client to connect to your MySQL database and perform few tests such as if the Security Groups are working properly and if the “hive” database was created properly

Note: You can do a telnet test from within EMR box as well to test Security Group access.

19 – To connect to the RDS MySQL, run the following command from your EMR box:

 mysql -h <rds-endpoint> -P 3306 -u <rds master user> -p <rds master password>

Examplemysql -h -P 3306 -u admin123 -pPwD12345

20 – Once connected, use the following commands to verify if the Hive metastore was indeed created in the RDS. You should be able to see a database named “hive” there:

show databases;       à Lists all databases – “hive” should be there
use hive;             à Connects you to “hive” database
show tables;          à Lists all the meta tables within hive database
select * from TBLS;   à Lists all tables created in hive. At this point there’s none

Setting up necessary Spectrum Roles and Network requirements for Redshift and EMR

Note 1: Following steps assume that you already have a Redshift cluster and that you can connect to it. It will not guide you on how to create and access the Redshift cluster.

Note 2: Since EMR, RDS MySQL share the same VPC’s default security group, they should be able to communicate to each other already. If that’s the case, you can skip Step 22 and go straight to Step 23, otherwise, If EMR and Redshift use different security groups, please do the step 22 first.

21 – Create a Role for Spectrum and attach it to your Redshift cluster. Follow the instructions here:

•       To Create the Role:

•       To Associate the Role:

22 – (Optional) Now that Redshift can access S3, Redshift also needs to access EMR cluster and vice-versa. Follow the steps listed under section “Enabling Your Amazon Redshift Cluster to Access Your Amazon EMR Cluster” in the following link:

Note: In summary, this creates an EC2 security group with Redshift’s Security Group and the EMR’s master node’s security groups inside it. Redshift’s Security Group must allow TCP in every port (0 – 65535) while EMR’s Security Group must allow TCP in port 9083 (Hive’s default). Next, you attach this newly created security group to both of your Redshift and EMR clusters.

23 – Once this is done, you should now be able to create the External Schema in Redshift, query the external tables from Redshift and also be able to create/see the schemas/tables from EMR Hive as well. However, at this point there’s no tables created yet.

Creating Tables on Hive First

24 – Log to Hive console and run the following:

> show databases;
default  (that’s the only database so far)
> create external table hive_table (col1 int, col2 string)
location ‘s3://<your_bucket>/<your_folder>/‘;

> show tables;
hive_table  (that’s the table we just created)

25 – Log back to your MySQL database and run the following commands:

show databases;       à Lists all databases – “hive” should be there
use hive;             à Connects you to “hive” database
show tables;          à Lists all the meta tables within hive database
select * from TBLS;   à  Lists all tables created in hive, “hive_table” is there!

Note: Now you will be able to see the newly created table “hive_table” showing on your External MySQL catalog.

Creating Schemas and Tables on Redshift Now

26 – On Redshift side, an External Schema must be created first before creating or querying the Hive tables, like following:

CREATE EXTERNAL SCHEMA emr_play                     à It can be any name, that’s a schema valid only for Redshift.
FROM HIVE METASTORE DATABASE ‘default’              à Use default database to match the database we have in Hive.
URI ‘172.XXX.XXX.XXX‘ PORT 9083                     à EMR’s Private IP of the Master Instance. Hive’s default port is 9083.
IAM_ROLE ‘arn:aws:iam::000000000000:role/spectrum‘; à A valid Spectrum Role attached Redshift.

27 – Create the table(s):

create external table emr_play.redshift_table (col1 int, col2 varchar)
location ‘s3://<your_bucket>/<your_folder>/‘;

28 – Simply query the table now:

select * from emr_play.redshift_table;

29 – One more time, log back to your MySQL database and run the following commands again:

show databases;       à Lists all databases – “hive” should be there
use hive;             à Connects you to “hive” database
show tables;          à Lists all the meta tables within hive database
select * from TBLS;   à  Lists all tables created in hive, both tables are there!

 Note: You should be able to see the both Hive and Redshift tables now showing on your External MySQL catalog. You can also query the tables and create new tables on both Hive and Redshift side.

Federated Query from Redshift to Aurora PostgreSQL

Create Public Accessible Redshift Cluster and Aurora PostgreSQL/ RDS PostgreSQL cluster. The RDS PostgreSQL or Aurora PostgreSQL must be in the same VPC as your Amazon Redshift cluster. If the instance is publicly accessible, configure its security group’s inbound rule to: Type: PostgreSQL, Protocol: TCP, Port Range: 5432, Source: Otherwise, if the instance is not publicly accessible, you don’t need to configure an inbound rule.

  1. Go to AWS Console > Secrets Manager > Create Secret Managers for RDS Database and Select your PostgreSQL database
  2. Create IAM policy with ARN of above Secrets manager
"Version": "2012-10-17",
"Statement": [
"Sid": "AccessSecret",
"Effect": "Allow",
"Action": [
"Resource": "arn:aws:secretsmanager:us-east-1:111111111111:secret:federated-query-L9EBau"
"Sid": "VisualEditor1",
"Effect": "Allow",
"Action": [
"Resource": "*"
  1. Create IAM Redshift customizable role and attach the Above Policy to it.
  2. Attach the Role to your Redshift Cluster
  3. Create External Schema in Redshift
DATABASE 'testdb' SCHEMA 'aurora_schema'
URI '' PORT 5432
OPTIONS 'application_name=psql'
IAM_ROLE 'arn:aws:iam::1111111111111:role/federated-query-role'
SECRET_ARN 'arn:aws:secretsmanager:us-east-1:11111111111111:secret:federated-query-L9EBau';
  1. In RDS Aurora PostgreSQL create the schema which will hold the objects for federated query access
testdb=> create schema aurora_schema;
testdb=> create table aurora_schema.federatedtable (id int8, name varchar(50), log_txn_date timestamp);
testdb=> insert into aurora_schema.federatedtable values(1,'shadab','2019-12-26 00:00:00');
testdb=> select * from aurora_schema.federatedtable;
id | name | log_txn_date
1 | shadab | 2019-12-26 00:00:00
(1 row)
  1. Login to your Redshift cluster and Run the Federated Query from Redshift to PostgreSQL —
testdb=# select * from myredshiftschema.federatedtable;
id | name | log_txn_date
1 | shadab | 2019-12-26 00:00:00
(1 row)
-- Trying out CTAS from Redshift to PostgreSQL --
testdb=# create table test as select * from myredshiftschema.federatedtable;
testdb=# select * from test;
id | name | log_txn_date
1 | shadab | 2019-12-26 00:00:00
testdb=# select pg_last_query_id();

(1 row)

select * from svl_s3query_summary where query='1251';
-[ RECORD 1 ]-----------+---------------------------
userid | 100
query | 1251
xid | 7338
pid | 11655
segment | 0
step | 0
starttime | 2019-12-27 06:17:30.800652
endtime | 2019-12-27 06:17:30.947853
elapsed | 147201
aborted | 0
external_table_name | PG Subquery
file_format | Text


Federated Query in Amazon Redshift (Preview) –
Create a Secret and an IAM Role for Federated Query –

Run Multiple Commands on Remote Host using SSH & Sync Directories to Remote Host



### Run Multiple Commands on Remote Host ###
while IFS= read -r dest; do
   ssh -i "mynew_key.pem" $dest '
	sudo yum install rsync
	sudo chown -R ec2-user:root /var/www
	sudo rm -rf /home/ec2-user/ourfile.txt
	ls -ltrh /var/www/html
        hostname' </dev/null
done < hosts.txt

### Transfer File to All Remote Hosts ###
#while IFS= read -r dest; do
#  scp -i "mynew_key.pem" $sourcefile "$dest:$remotedir"
#done <hosts.txt

# Sync Push Local Directory to Remote Hosts Using RSYNC ###
while IFS= read -r dest; do
  rsync -avz /var/www/ --delete --exclude 'stats' -e "ssh -i /home/ec2-user/mynew_key.pem" $dest:/var/www/
done <hosts.txt

# Sync Pull Remote Directory to Local Directory Using RSYNC ###
#while IFS= read -r dest; do
#  rsync -avz --dry-run --delete --exclude 'stats' -e "ssh -i /home/ec2-user/mynew_key.pem" $dest:/var/www/ /var/www/
#done <hosts.txt

Very useful in syncing Apache Web Server directories to multiple hosts when running under AWS ELB

Create-Modify-Destroy Redshift Cluster Using Terraform

Devops tool have become quite popular in the last few years. Infrastructure automation tools like Chef, Ansible, Cloudformation and Terraform are increasingly being used to provision cloud infrastructure. Once only used for provisioning compute resources but nowadays due to the agile data analytics organizational need even resources like Data warehouses are being added to the devops cycle. Most of these tools eg: Saltstack, Ansible, Chef, Puppet etc are widely used in the industry one of them stands out among the rest : Terraform.

What makes Terraform different from others including our very own Cloudformation is it’s declarative nature, most of infrastructure automation tools are procedural in nature not declarative. Let me explain the difference between declarative and procedural

 Lets say you want to provision 10 ec2 instances using an automation approach. With a tool like Ansible your template would like something below using a procedural declaration.

 – ec2:
 count: 10
 image: ami-v1
 instance_type: t2.micro

Same code in Terraform using a declarative approach looks like

 resource “aws_instance” “example” {
 count = 10
 ami = “ami-v1”
 instance_type = “t2.micro”

The difference is that even though both approaches look similar, lets say you want to add additional 5 servers to the configuration. The ansible code is essentially useless since ansible does not maintain state. For ansible if you change the count and increase it to 15, it will create 15 new additional EC2 instances. Ansible has no way to know what it did in the past. For creating total 15 servers you need to add additional 5.

 – ec2:
 count: 5
 image: ami-v1
 instance_type: t2.micro

With Terraform this is the big game changer. Terraform maintains state of your infrastructure. Terraform is aware of any state it created in the past. Therefore, to deploy additional 5 more servers, all you have to do is go back to the same Terraform template and update the count from 10 to 15:

 resource “aws_instance” “example” {
 count = 15
 ami = “ami-v1”
 instance_type = “t2.micro”

When you execute this template Terraform knows it created 10 instances before so it will add only the 5 new instances. With declarative approach the end goal matters. This makes Terraform the winner IMHO from all others. So in this example once we are done with the test , to delete the cluster we just have to run one command without specifying any additional details. Becuase Terraform maintains a record that it created a Redshift cluster with so and so name.

 Let’s now jump in and create a Redshift dc1.large cluster in region ‘us-east-1’ using Terraform

1. Download and Install Terraform for Linux from the Terraform Website :

Note : Install awscli and configure your AWS credentials before we begin

On Linux the download is a zip file containing only 1 file. Unzip to any directory and copy the file ‘terraform’ to /usr/bin

 2. Create a Terraform configuration file in a new directory

 mkdir redshift_tf

 cd redshift_tf


 provider “aws” {
 region = “us-east-1”
resource “aws_redshift_cluster” “default” {
 cluster_identifier = “terraform-rs-cluster”
 database_name = “testdb”
 master_username = “awsuser”
 master_password = “SomePassword1”
 node_type = “dc1.large”
 cluster_type = “single-node”
 skip_final_snapshot = true

 3. Initiate Terraform

$ terraform init

 Initializing the backend…

Initializing provider plugins…
– Checking for available provider plugins…
– Downloading plugin for provider “aws” (terraform-providers/aws) 2.14.0…

The following providers do not have any version constraints in configuration,
so the latest version was installed.

To prevent automatic upgrades to new major versions that may contain breaking
changes, it is recommended to add version = “…” constraints to the
corresponding provider blocks in configuration, with the constraint strings
suggested below.

* version = “~&gt; 2.14”

Terraform has been successfully initialized!

 4. Apply Terraform Configuration

Note 1: From Terraform 0.11 and above you do not have to run ‘terraform plan’ command

 2 : For security purpose it is not good practice to store access_key or
 secret_key in the .tf file. If you have installed awscli then Terraform
 will take your AWS credentials from ‘~/.aws/credentials’ or IAM

$ terraform apply

 An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
 + create

Terraform will perform the following actions:

 # aws_redshift_cluster.default will be created
 + resource “aws_redshift_cluster” “default” {
 + allow_version_upgrade = true
 + automated_snapshot_retention_period = 1
 + availability_zone = (known after apply)
 + bucket_name = (known after apply)
 + cluster_identifier = “terraform-rs-cluster”
 + cluster_parameter_group_name = (known after apply)
 + cluster_public_key = (known after apply)
 + cluster_revision_number = (known after apply)
 + cluster_security_groups = (known after apply)
 + cluster_subnet_group_name = (known after apply)
 + cluster_type = “single-node”
 + cluster_version = “1.0”
 + database_name = “testdb”
 + dns_name = (known after apply)
 + enable_logging = (known after apply)
 + encrypted = false
 + endpoint = (known after apply)
 + enhanced_vpc_routing = (known after apply)
 + iam_roles = (known after apply)
 + id = (known after apply)
 + kms_key_id = (known after apply)
 + master_password = (sensitive value)
 + master_username = “awsuser”
 + node_type = “dc1.large”
 + number_of_nodes = 1
 + port = 5439
 + preferred_maintenance_window = (known after apply)
 + publicly_accessible = true
 + s3_key_prefix = (known after apply)
 + skip_final_snapshot = false
 + vpc_security_group_ids = (known after apply)

Plan: 1 to add, 0 to change, 0 to destroy.

 aws_redshift_cluster.default: Creation complete after 3m33s [id=terraform-rs-cluster]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

 5. Check the state of your infrastructure

You can go
check in your AWS console &gt; Redshift Dashboard and you will see the cluster. To see it from terraform run the below command

$ terraform show

 6. Destroy the Redshift cluster
Like i mentioned in the beginning of this article, the beauty of Terraform is it maintains
state of your infrastructure. You can remove the Redshift cluster by running
 just one simple command

$ terraform destroy

Check Redshift Table and Send SMS Programmatically using Amazon SNS

Requirement : Check if an UPDATE was run on a Redshift Table and Send SMS Programmatically using Amazon SNS. This script can be used in a variety of different scenarios, for eg: you can use the same logic to check for load errors on you cluster or check for INSERTS or DELETE commands.

Check if an UPDATE has occurred on a Table and send an SMS everytime the table is updated

Pre-requisites :

1. BOTO3 Python SDK installed for Python3.7

2. AWS CLI installed

3. Pscyopg2 package installed for Python3.7

4. Redshift Cluster

5. Amazon SNS configured to send SMS

6. Basic understanding of Python scripting, BOTO3 and Redshift.


EC2 Instance Running CENTOS

Python3.7 Installed

AWS CLI installed and Configured Account credentials


We will create a Python script to check svl_statementtext for update statements on a table ‘TEST’. The script can be configured to run in crontab every minute and if it an UPDATE occurs it dispatches an SMS using SNS.

1. Create the TEST table in your Redshift cluster and Insert some data into it

testdb=# create table test (id int8, name varchar(20));
testdb=# insert into test values(1,’John’);
testdb=# insert into test values(2,’Matt’);
testdb=# insert into test values(3,’Chris’);

2. Run an UPDATE statement on the table and check svl_statementtext

testdb=# select * from test;
 id | name
  1 | John
  2 | Matt
  3 | Chris
(3 rows)

testdb=# update test set name=’Tim’ where id=1;

testdb=# select * from svl_statementtext where text ilike ‘update%test%’ and starttime > date_trunc(‘minute’, sysdate);
 userid |  xid   |  pid  |             label              |         starttime
       |          endtime           | sequence | type  |
    100 | 506858 | 20017 | default                        | 2019-05-25 14:44:41.
657139 | 2019-05-25 14:44:49.955101 |        0 | QUERY | update test set name=’T
im’ where id=1;

(1 row)

As you can see the table logs the update command and displays it. Now we will run another update command and check the same table but using count(*)

testdb=# update test set name=’John’ where id=1;

testdb=# select count(*) from svl_statementtext where text ilike ‘update%test%’ and starttime > date_trunc(‘minute’, sysdate);
(1 row)

So it correctly display that 1 row was updated in the last minute on table ‘TEST’. Using this logic we can poll the table every minute to see if a transaction hit the table svl_statementtext. And if it did we will send an SMS via SNS

3. Python Script (#Attached to Check for UPDATE statements in last one minute and if COUNT is not ‘0’ then send an SMS

import boto3
import psycopg2

#Obtaining the connection to RedShift
con=psycopg2.connect(dbname= ‘testdb’, host=’’,
port= ‘5439’, user= ‘awsuser’, password= ‘********’)

#Opening a cursor and run sql query
cur = con.cursor()
cur.execute(“select count(*) from svl_statementtext where text ilike ‘update%test%’ and starttime > date_trunc(‘minute’, sysdate);”)
data = str(cur.fetchone())

#Close the cursor and the connection

# Compare data variable for threshold
if  data == ‘(0,)’:

    # Create an SNS client
    client = boto3.client(
    # Create the topic if it doesn’t exist
    topic = client.create_topic(Name=”invites-for-push-notifications”)
    topic_arn = topic[‘TopicArn’]  # get its Amazon Resource Name
    # Get List of Contacts
    list_of_contacts = [“+6144*********”] # <– You can add a list of mutiple mobile numbers here
    # Add SMS Subscribers
    for number in list_of_contacts:
        Endpoint=number  # <– numbers who’ll receive an SMS message.
    # Publish a message.
    client.publish(Message=”Hello World!”, TopicArn=topic_arn, MessageAttributes={
    ‘AWS.SNS.SMS.SenderID’: {
    ‘DataType’: ‘String’,
    ‘StringValue’: ‘EASYORADBA’ # <– Name of Sender, Not Available in USA
    },’AWS.SNS.SMS.SMSType’: {‘DataType’: ‘String’, ‘StringValue’: ‘Transactional’}})

Open 2 sessions and from one session run an UPDATE command on table ‘TEST’ and from another session execute the Python script. If you configured every properly, you will get an SMS from Sender ‘EASYORADBA’ wuth message text “Hello World”

4. Save Script & Schedule to run every minute in Crontab

* * * * * /usr/local/bin/python3.7

This script can be used in a variety of different scenarios to dispatch SMS based on some count logic. Another scenario is to schedule this script to check load errors on your Redshift cluster. Example run this script in your Data loading window and check for errors in STL_LOAD_ERRORS table. If there was a data loading issue then the Data Engineering team can be notified via SMS. I am attaching the script (  to check for data loading errors. You can change the granuliarity of time in which it should check for load errors by simply changing the time intervsl in date_trunc function.

SQL : select count(*) from stl_load_errors where starttime > date_trunc(‘minute’, sysdate);
